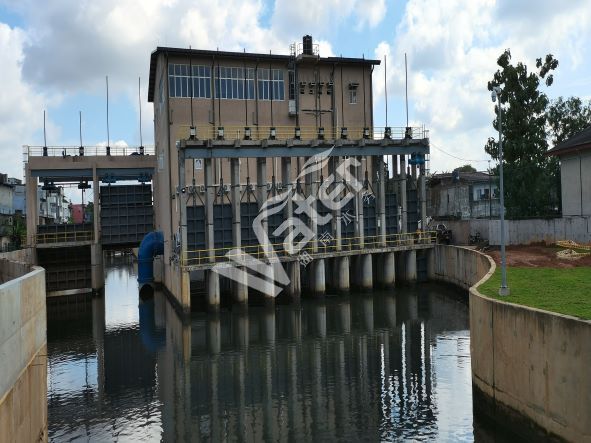

斯里兰卡某排涝灌溉合建泵站

发表时间:2023-10-11阅读量:1405

该项目由世界银行资助,提供30立方米/秒的排水能力,以保护城市免受洪水侵袭,同事兼具反灌溉功能。我司负责项目的设计、供应、安装、调试所有机电设备工作。

The project is located in Colombo of Sri Lanka and funded by the World Bank which provides 30 m3/s drainage capability to protect Colombo City against flood. In this project, our company’s role is that the design, supply, installation, testing and commissioning of all mechanical and electrical plant and all other items necessary for a complete and functional installation at each site, including as built drawings, operating and maintenance manuals but not limited the 11kV HV electrical panels, 3.3kV MV electrical panels, LV electrical panels, 2000kVA-11kV/3.3kV transformers, 200kVA-11kV/400V transformers, 1500kVA/1200kW 3.3kV standby generators, 227kVA/182kW 400V standby generator, 6 m3/s-5.3m(Q-H) 3.3kV axial flow pumps, DN1600 PN10 steel pipes& butterfly valves and fittings, 10T overhead crane, 5.4mX7m(width X height) rotary type screens and belt conveyors, 8.1mX6.2m(width X height) hydraulic gates and relevant hoists, CCTV system, PLC and SCADA system, lightning protection and earthing system, water supply and drainage system, instruments, 12T arm roll truck etc.
